Enhanced Stability
Efficient Voltage Stabilization

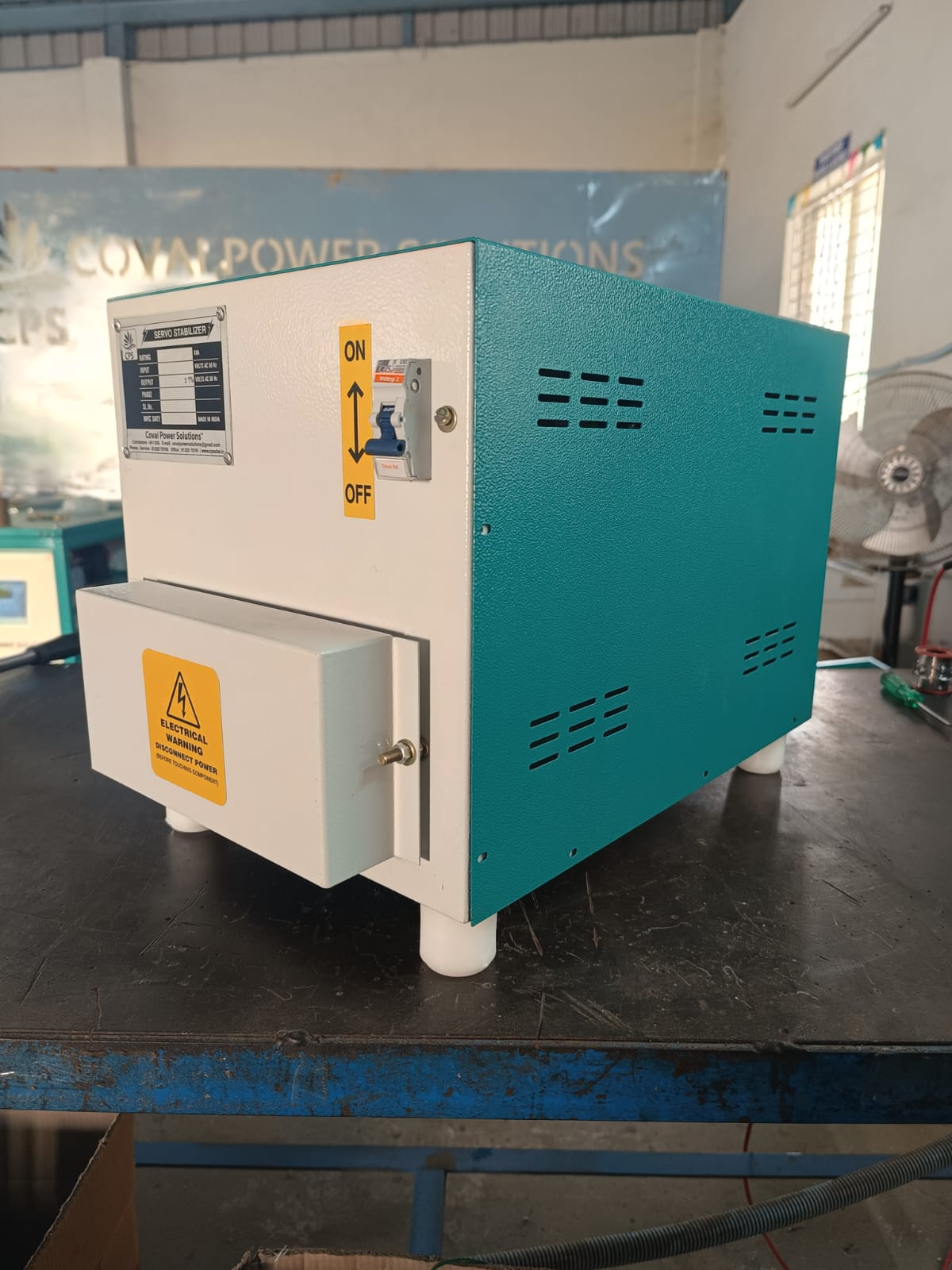

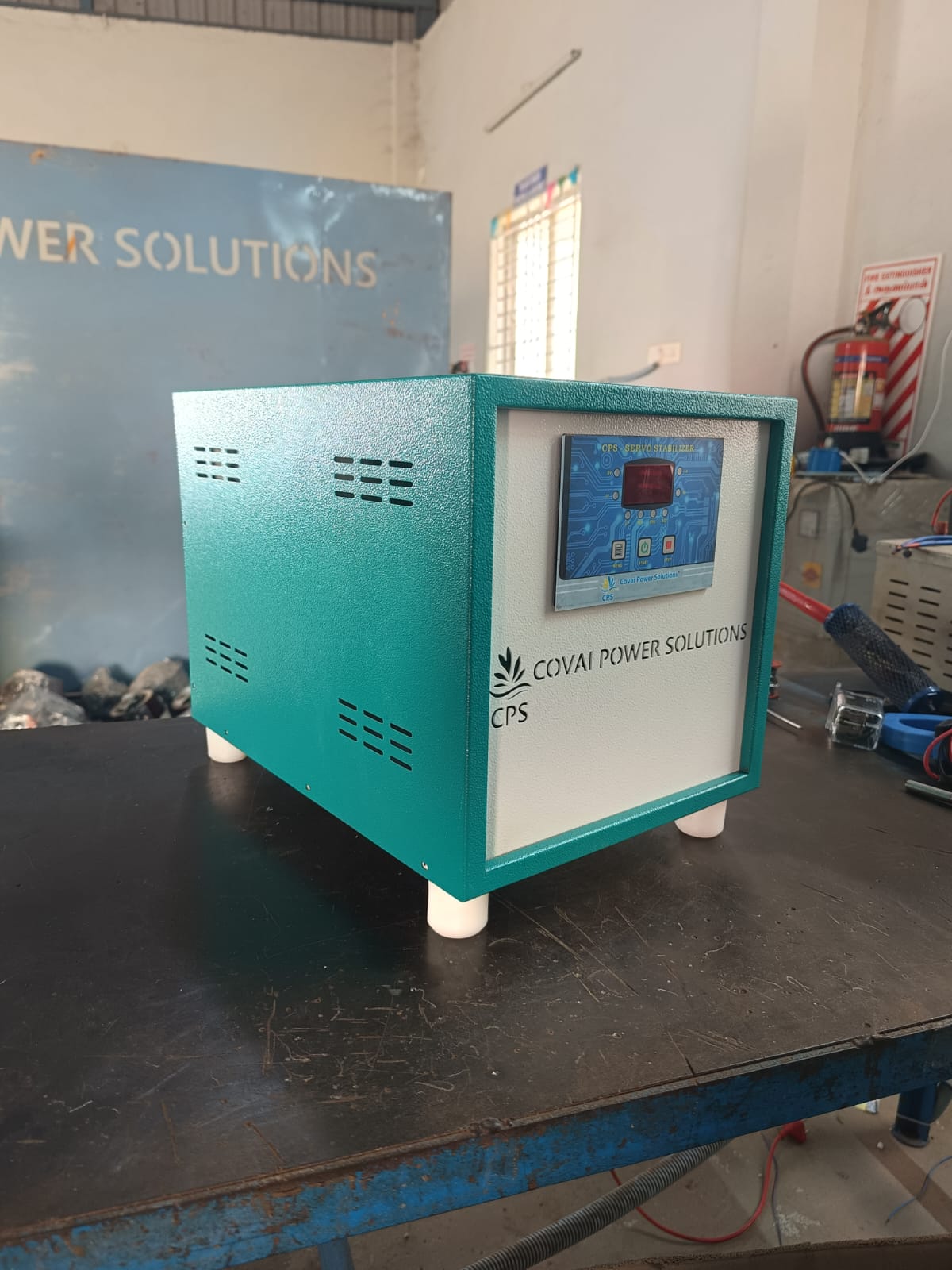

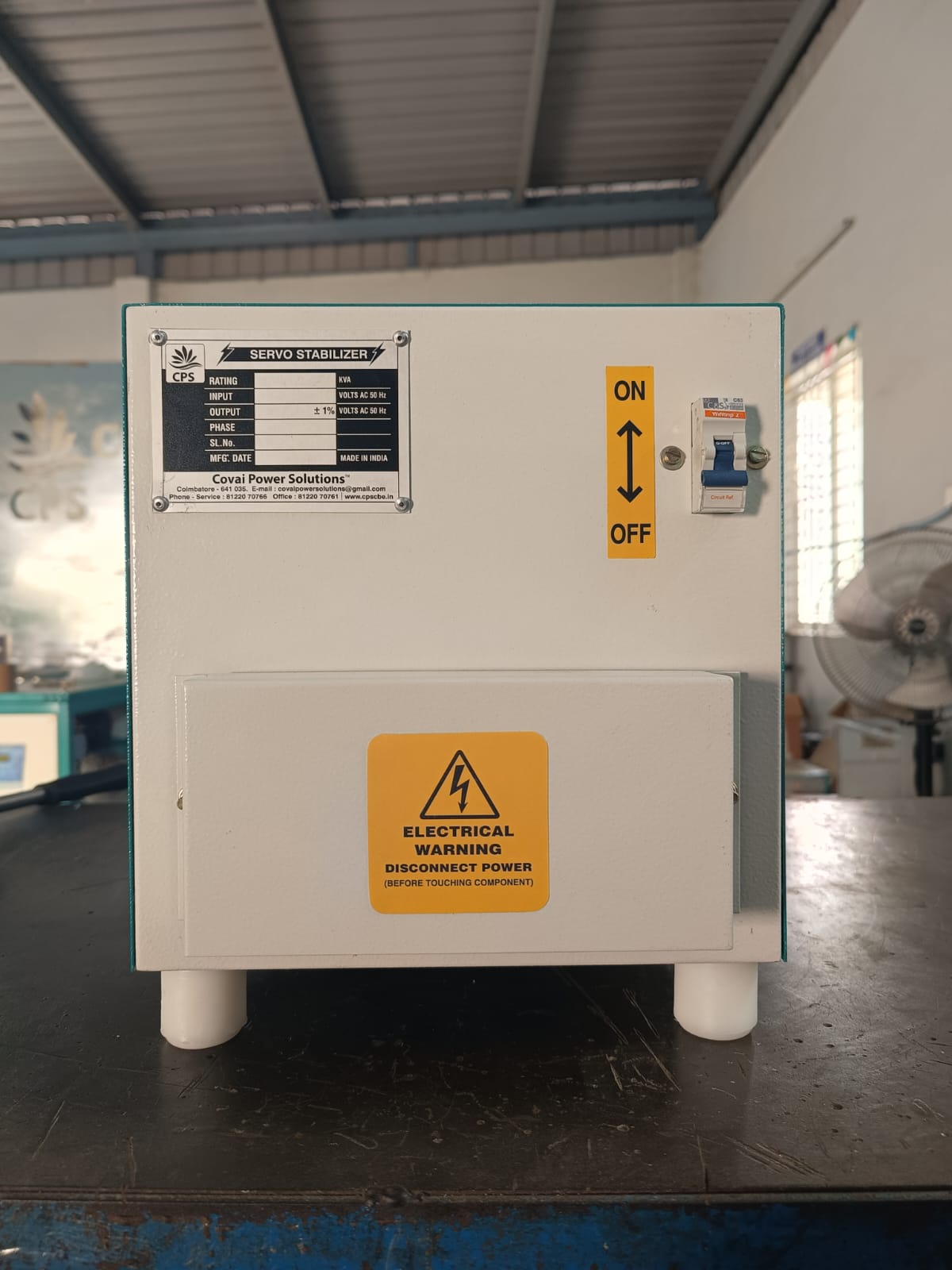

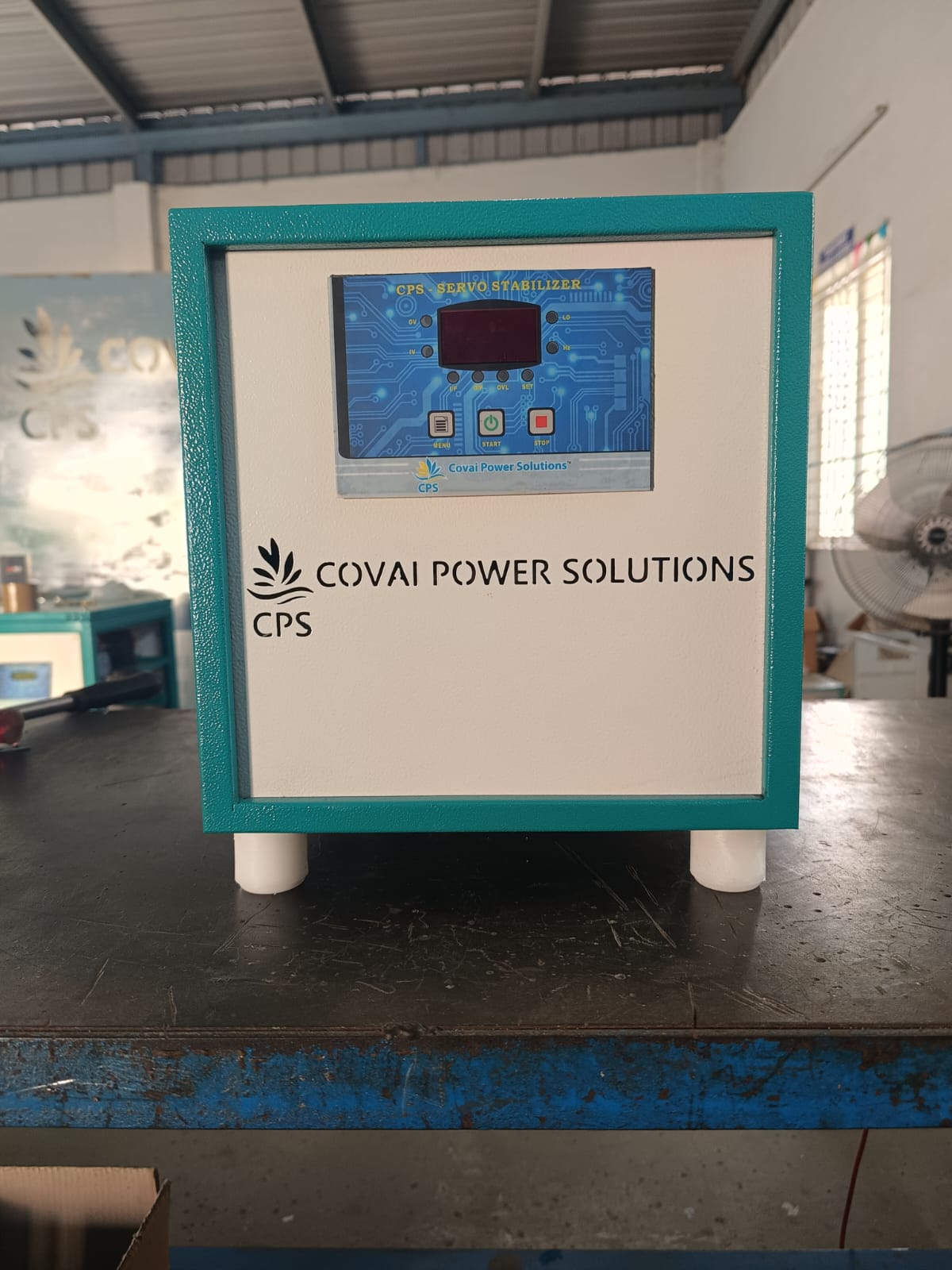

Discover our cutting-edge Single Phase Servo Stabilizer, meticulously engineered to ensure optimal voltage regulation for your electrical systems. Covai Power Solutions' stabilizers offer unparalleled reliability and efficiency, guaranteeing stable power supply even in fluctuating conditions. With advanced technology and precision design, our stabilizers provide enhanced stability, safeguarding your equipment and optimizing performance. Trust Covai Power Solutions for dependable voltage stabilization solutions tailored to your needs.
Ensuring Stable Voltage for Your Needs
A single phase servo stabilizer is a crucial device designed to regulate and stabilize voltage fluctuations in electrical systems, ensuring a constant and stable power supply. It is particularly useful in environments where voltage fluctuations are common, such as residential areas, small businesses, and industrial settings. This type of stabilizer employs advanced servo motor technology to continuously monitor the incoming voltage and automatically adjust the output voltage to maintain a steady level within the desired range, thus protecting sensitive electrical equipment from potential damage caused by overvoltage or undervoltage.
Functionality and Features
Single phase servo stabilizers are equipped with various features to enhance their functionality and performance. These include precise voltage regulation capabilities, fast response times, high efficiency, and robust construction for durability. They also often come with overload and short-circuit protection mechanisms to safeguard both the stabilizer itself and connected devices from electrical faults. Additionally, some models may offer optional features such as digital displays, remote monitoring, and automatic voltage correction, providing users with greater convenience and control over their electrical systems.
Single Phase Servo Stabilizer Specifications
| Parameter | Specification |
|---|---|
| Stabilizer Type | Servo controlled voltage stabilizer with 1Ph input and 1Ph Output, suitable for unbalanced loads and unbalanced input conditions. |
| Rating & Load | 10KVA to 25KVA 1Ph, 3 wire |
| Input voltage range | 90V-260V, 140V-270V, 170V-270V, 170V-300V (P-N) |
| Normal Output Voltage | 220V, 230V, 240V +/-5% (P-N) |
| Type of Cooling | Air Cooled / Oil Cooled |
| Servo Motor Drive | AC Synchronous Stepper Motor |
| Average Correction Rate | 45C/sec Line to Neutral or 70V/sec L-N |
| Input Frequency Range | 47 Hz to 53 Hz |
| Efficiency | 98% at normal input |
| Wave Distortion | Nil |
| Effect of Load Power Factor | Nil |
| Type of Servo Control | Buck Boost Transformer and Variac type |
| Under/Over Voltage Cutoff | Upper limit +/-5%, Lower limit 10% |
| Overload Cutoff | Operative above 110% of the rated output current with graded time delay |
| Short Circuit Protection | MCB provided up to 100 kVA. Above 100 kVA HRC fuse (optional) |
| Phase Reversal Protection | Provided |
| Single Phase Prevention | Provided |
| Service Bypass | Provided on the input (optional above 15 kVA) |
| Resetting Mode | Automatic restart with option for manual restart |
| Parameters Displayed | Input & output voltages, output currents & frequency |
| LED Indications | Non-latching LED lamps for output ON, MCB trip, stabilizer bypass |
| Housing | Powder coated with castor wheels |
| Input/Output Terminations | 4-way terminal connector for cable termination |
Applications:
- CNC & VMC Machines
- Yele Communications Network
- Printing Machines
- Bio Medical Machineries
- Textile Machines
- Laboratory Equipments
